1. Kondisi
[Kembali]
Pada praktikum modul 3 ini. Dipilih percobaan 3 dengan kondisi 1. Pada kondisi 1, Membuat rangkaian LED menyala ketika potensiometer 0% dan LED padam ketika potensiometer 100%.
2. Rangkaian Simulasi [Kembali]
LED menyala ketika potensiometer 0%
LED padam ketika potensiometer 100%

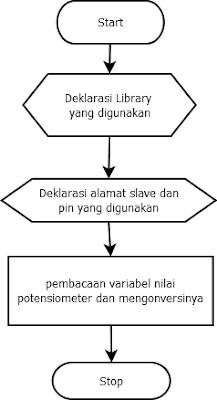

3. Flowchart [Kembali]
MASTER
SLAVE
4. listing program [Kembali]
a. Master
#include <Wire.h>
#define SLAVE_ADDR 9
int analogPin = 0;
int val = 0;
void setup() {
Wire.begin();
Serial.begin(9600);
}
void loop() {
delay(50);
val = map(analogRead(analogPin), 0, 1023, 255, 1);
Wire.beginTransmission(SLAVE_ADDR);
Wire.write(val);
Serial.println(val);
Serial.println(analogRead(analogPin));
Wire.endTransmission();
}
b. Slave
#include <Wire.h>
#define SLAVE_ADDR 9
int LED = 13;
int rd;
int br;
void setup() {
pinMode(LED, OUTPUT);
Wire.begin(SLAVE_ADDR);
Wire.onReceive(receiveEvent);
Serial.begin(9600);
Serial.println("I2C Slave demo");
}
void receiveEvent() {
rd = Wire.read();
Serial.println(rd);
}
void loop() {
delay(50);
br = map(rd, 1, 255, 100, 2000);
if (rd == 255){
digitalWrite(LED, HIGH);
}
if (rd == 1){
digitalWrite(LED, LOW);
}
}
5. Video Simulasi [Kembali]
6. Link Download [Kembali]
File Library Arduino = Klik Disini
File Data Sheet Arduino = Klik Disini
File Video Simulasi = Klik Disini
File Rangkaian = Klik Disini
File Listing Program Master = Klik Disini
File Listing Program clave = Klik Disini
File Flowchart Master = Klik Disini
File Flowchart Clave = Klik Disini
File Html = Klik Disini
